Technical specifications

Intended delivered volume range (for ASV modes)

200-2500 mL

Maximum single fault steady state pressure

Device will shut down in the presence of a single fault if the steady state pressure exceeds:

40 cm H₂O (40 hPa) for more than 1 second.

Pressure measurement tolerance

± 0.5 cm H₂O (0.5 hPa) ±4% of measured reading

Flow measurement tolerance

± 6 L/min or 10% of reading, whichever is greater, at 0 to 150 L/min positive flow

Operating pressure range

CPAP	4-20 cm H₂O (4-20 hPa) (measured at the mask)
CPAP with EPR	4-20 cm H₂O (4-20 hPa) CPAP, With EPR settings: EPR off, Level 1 = 1.0 cm H₂O (1 hPa), Level 2 = 2.0 cm H₂O (2 hPa), Level 3 = 3.0 cm H₂O (3 hPa) EPR reduces the pressure during expiration by the amount dependent on the level set above, but the pressure delivered will not drop below 4.0 cm H₂O (4 hPa).
AutoSet, AutoSet for Her	4-20 cm H₂O (4-20 hPa)
AutoSet with EPR, AutoSet for Her with EPR	4-20 cm H₂O (4-20 hPa) APAP, With EPR settings: EPR off, Level 1 = 1.0 cm H₂O (1 hPa), Level 2 = 2.0 cm H₂O (2 hPa), Level 3 = 3.0 cm H₂O (3 hPa) EPR reduces the pressure during expiration by the amount dependent on the level set above, but the pressure delivered will not drop below 4.0 cm H₂O (4 hPa).
S, T, ST	IPAP: 4-25 cm H₂O (4-25 hPa), EPAP: 3-25 cm H₂O (3-25 hPa), Maximum pressure: 25 cm H₂O (25 hPa)
VAuto	IPAP: 4-25 cm H₂O (4-25 hPa), EPAP: 4-25 cm H₂O (4-25 hPa), Pressure support: 0-10 cm H₂O (0-10 hPa), Maximum pressure: 25 cm H₂O (25 hPa)
ASV and ASVAuto	EPAP: 4-15 cm H₂O (4-15 hPa), Min PS: 0-6 cm H₂O (0-6 hPa), Max PS: 5-20 cm H₂O (5-20 hPa), Maximum pressure = 25 cm H₂O (25 hPa)

Flow (maximum) at set pressures

The following are measured according to ISO 80601-2-70:2015 and ISO 80601-2-70:2020

With HumidAir 11 humidifier tub

Pressure cm H₂O (hPa)	AirCurve 11 VPAP Tx and Standard air tubing L/min	AirCurve 11 VPAP Tx and SlimLine L/min	AirCurve 11 VPAP Tx and ClimateLineAir 11 L/min
4	161	170	161
8	165	174	169
12	167	177	175
16	169	172	170
20	167	165	165
25	164	156	156

With Side cover

Pressure cm H₂O (hPa)	AirCurve 11 VPAP Tx and Standard air tubing L/min	AirCurve 11 VPAP Tx and SlimLine L/min	AirCurve 11 VPAP Tx and ClimateLineAir 11 L/min
4	208	194	193
8	200	189	188
12	192	182	181
16	184	176	176
20	176	170	167
25	166	159	158
Note Refer to the relevant measurement uncertainty from the Measurement system uncertainties table.

Sound

Declared dual-number noise emission values in accordance with ISO 4871:1996
Device with standard air tubing and side cover as measured according to ISO 80601-2-70:2020 and ISO 80601-2-79:2018
Sound pressure level	26 dBA with uncertainty of 2 dBA
Sound power level	34 dBA with uncertainty of 2 dBA
Device with standard air tubing and HumidAir 11 humidifier tub (HumidAir 11 humidifier tub half-filled) as measured according to ISO 80601-2-70:2020, ISO 80601-2-74:2021 and ISO 80601-2-79:2018
Sound pressure level	27 dBA with uncertainty of 2 dBA
Sound power level	35 dBA with uncertainty of 2 dBA

Physical Dimensions

Dimensions (H x W x D) with HumidAir 11 humidifier tub:	3.72" x 10.21" x 5.45" (94.5 mm x 259.4 mm x 138.5 mm)
Dimensions (H x W x D) with side cover:	3.72" x 9.32" x 5.45" (94.5 mm x 236.8 mm x 138.5 mm)
Air outlet:	The 22 mm conical outlet connector complies with EN ISO 5356-1:2015
Weight - device and HumidAir 11 humidifier tub:	43 oz (1229 g)
Weight - device with side cover:	44 oz (1236 g)
Housing construction:	Flame retardant engineering thermoplastic
Hot plate - Material:	Stainless steel
Water capacity:	380 mL
Time between each refill of the humidifier tub:	> 8 hours ±0.5 hours (tested at 23 ±2°C / 73.4 ± 3.6 °F)
Recommended water type to use in the humidifier tub (Standard tub):	Distilled water
Recommended water type to use in the humidifier tub (Cleanable tub):	Drinking quality water (potable)
Humidifier tub - Material:	Injection molded plastic, stainless steel and silicone seal

90W power supply unit

Input range	100-240 V, 50-60 Hz, 1.0-1.5 A 115 V, 400Hz, 1.5 A for aircraft use
DC output:	24 V 3.75 A
Typical power consumption:	65.3 W (72.5 VA)
Peak power consumption:	103.4 W (109.9 VA)
Class of equipment	Class ll

Environmental conditions

Operating temperature	+41°F to +95°F (+5°C to +35°C)
	Note The airflow for breathing produced by this therapy device can be higher than the room temperature. Under extreme ambient temperature conditions (104°F/40°C) the device remains safe.
Operating humidity	10 to 95% relative humidity, non-condensing
Operating altitude	Sea level to 8,500' (2,591 m); air pressure range 1013 hPa to 738 hPa Note Using the device at high altitude in combination with high pressure and high flow may affect the delivered pressure and the accuracy of the displayed and reported values.
Storage pressure/Storage altitude	1013 to 738 hPa
Storage and transport temperature	-13°F to +158°F (-25°C to +70°C)
Storage and transport humidity	5 to 95% relative humidity, non-condensing

Air Filter

Standard:	Material: Polyester non woven fiber Average arrestance: >75%, when tested to EN779.
Hypoallergenic:	Material: Blended synthetic fibers in a polypropylene carrier Efficiency: >80% (average) when tested to EN13274-7. Note The use of a ResMed approved hypoallergenic filter will result in a small reduction in the accuracy of the delivered pressure at high leaks.

Electromagnetic compatibility

The AirCurve 11 VPAP Tx complies with all applicable electromagnetic compatibility requirements (EMC) according to IEC 60601-1-2:2020, for residential, commercial and light industry environments.

Portable and mobile RF communications equipment should be used no closer to any part of the machine, including cables, than the recommended 3.94" (10 cm) separation distance.

The AirCurve 11 VPAP Tx has been designed to meet EMC standards. However, should you suspect that the device performance (eg. pressure or flow) is affected by other equipment, move the device away from the possible cause of interference.

Information regarding the electromagnetic emissions and immunity of this ResMed device can be found in ResMed.com/downloads/devices.

IEC 60601-1 classification

Class II (double insulation), Type BF, Ingress protection IP22.

Supplemental oxygen maximum flow

15 L/min

Aircraft use

ResMed confirms that the machine meets the Federal Aviation Administration (FAA) requirements (RTCA/DO-160, section 21, category M; RTCA-DO-160, section 20, category T) for all phases of air travel.

Design life

Device, power supply unit:	5 years
Cleanable humidifier tub:	2.5 years
Standard humidifier tub, Air tubing:	6 months

General

A clinician or sleep technician is an intended operator.

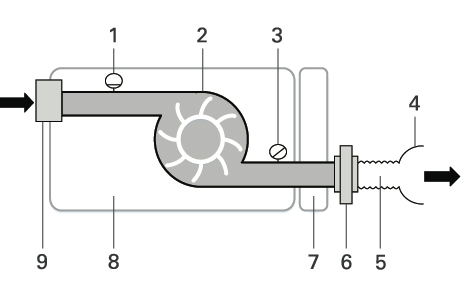

Pneumatic flow path

Flow sensor
Blower
Pressure sensor
Mask
Air tubing
Bacterial/viral filter
Humidifier
Device
Inlet filter

Displayed values

Value	Range	Display resolution
Pressure at mask^[a]:
Mask pressure	Minimum EPAP to maximum pressure (See section above Operating pressure range)	0.1 cm H₂O (0.1 hPa)
Flow derived values^[a]:
Leak	0-120 L/min	0.1 L/min
Tidal volume	0-4000 mL	1 mL
Respiratory rate	0-90 BPM	1 BPM
Minute ventilation	0-30 L/min	0.1 L/min
Ti	0-10 sec	0.1 sec
I:E ratio	1:10-4:1	0.1
^[a]Results are expressed as STPD (Standard Temperature and Pressure, Dry). Use the following table to convert the STPD flow setting to BTPS (Body Temperature and Pressure, Saturated) flow.

Value	Accuracy
Pressure at mask^[a]:
Mask pressure	±0.5 cm H₂O (0.5 hPa) + 4% of set value
Flow and flow derived values^[a]:
Flow	±6 L/min or 10% of reading, whichever is greater, at 0 to 150 L/min positive flow
Leak	±6 L/min, at 0 to 60 L/min^[a]
Tidal volume	±30 mL or 20% of reading, whichever is greater^[a]
Respiratory rate	±1.0 BPM^[a]
Minute ventilation	±20%^[a]
^[a]Accuracy may be reduced by the presence of leaks, supplemental oxygen, tidal volumes <100 mL or minute ventilation <3 L/min.

STPD to BTPS conversion

Altitude (m)	Ambient pressure (hPa)	STPD to BTPS conversion factor
0	1013.25	1.12
500	956.53	1.19
1000	902.41	1.27
1500	850.80	1.36
2000	801.60	1.45
2500	754.73	1.54

Pressure accuracy as tested according to ISO 80601-2-79:2018

± (0.5 cm H₂O (hPa) + 4% of the set pressure) cm H₂O (hPa)

Pressure accuracy - CPAP mode

Maximum static pressure variation at 10 cm H₂O (10 hPa) according to ISO 80601-2-70:2015 and ISO 80601-2-70:2020
Device with HumidAir 11 humidifier tub / side cover and air tubing: ±0.5 cm H₂O (±0.5 hPa)
Maximum dynamic pressure variation according to ISO 80601-2-70:2015
Device with HumidAir 11 humidifier tub / side cover and air tubing:
Breath rate	10 BPM	15 BPM	20 BPM
Dynamic pressure variation (cm H₂O [hPa])	0.5	0.5	0.8
Maximum dynamic pressure variation according to ISO 80601-2-70:2020
Device with HumidAir 11 humidifier tub / side cover and air tubing:
Maximum error from set pressure (cm H₂O [hPa]): ±1
Note Refer to the relevant measurement uncertainty from the Measurement system uncertainties table.

Pressure accuracy - Bilevel modes

Maximum dynamic pressure variation according to ISO 80601-2-70:2015 and ISO 80601-2-70:2020

Device with HumidAir 11 humidifier tub / side cover and air tubing:

Inspiration/Expiration mean error ± standard deviation (cm H2O [hPa]): 1±0.1

Note

Refer to the relevant measurement uncertainty from the Measurement system uncertainties table.

% of Inspiratory Phase for calculation: > 60 % of Expiratory Phase for calculation: > 66

Note

For each inspiratory and expiratory breath phase, the data time slot starts immediately after the initial transient overshoot/undershoot period and ends at the point when flow diminishes to an absolute value equivalent to its starting point, towards the end of the breath phase.

Measurement system uncertainties

In accordance with ISO 80601‑2‑70:2020 and ISO 80601‑2‑79:2018 the measurement uncertainty of the manufacturer's test equipment is:
For measures of flow:	± 3.9 L/min
For measures of volume:	± 6 mL or 5% (whichever is greater)
For measures of static/dynamic pressure:	± 0.15 cm H₂O (± 0.15 hPa)
For measures of time:	± 6 ms
In accordance with ISO 80601‑2‑70:2020 and ISO 80601‑2‑79:2018 the measurement uncertainty of the manufacturer's test equipment is:
For measures of humidification output:	± 0.5 mg/L BTPS

Bluetooth

Technology used:	Bluetooth Low Energy (BLE)
Connection types:	GATT
Frequency:	2400 to 2483.5 MHz
Max RF power output:	+4 dBm
Operation range:	10 m (Class 2)

Cellular technology and regulatory compliance

Refer to the Cellular information guide in ResMed.com/downloads/devices.

The device should be installed and operated with minimum distance 15 mm (0.59") between the equipment and the user's body.

Humidifier

Maximum heater plate temperature:

154ºF (68ºC)

Temperature cut-out (heater):

165ºF (74ºC)

Maximum gas temperature (at mask)^[a]:

≤ 106ºF (41ºC)

^[a]The air flow for breathing produced by this therapy device can be higher than the temperature of the room. Under extreme ambient temperature conditions (104ºF/40ºC) the device remains safe.

Humidifier performance

SlimLine/Standard tubing

Mask Pressure cm H₂O (hPa)	Nominal RH output % at 72ºF (22ºC) ambient temperature		Nominal system output mg/L AH^[a], BTPS^[b]
	Setting 4 (default setting)	Setting 8 (maximum setting)	Setting 4 (default setting)	Setting 8^[c] (maximum setting)
3	80%	100%	≥6	≥12
4	80%	100%	≥6	≥12
10	80%	100%	≥6	≥12
20	80%	100%	≥6	≥12
25	80%	100%	≥6	≥12
^[a]AH - Absolute Humidity in mg/L ^[b]BTPS - Body Temperature Pressure Saturated ^[c]Humidifier performance meets ISO 80601-2-74:2021 performance > 10 mg/L BTPS tested at 59°F to 95°F (15°C to 35°C)

Climate Control Auto - ClimateLineAir 11

Mask Pressure cm H₂O (hPa)	Nominal RH output % at 72ºF (22ºC) ambient temperature	Nominal system output mg/L AH^[a], BTPS^[b]
3	85%	≥ 12
4	85%	≥ 12
10	85%	≥ 12
20	85%	≥ 12
25	85%	≥ 12

Air tubing

	ClimateLineAir 11	SlimLine / Standard 2m / Standard 3m
ClimateLineAir 11 temperature range	60 to 86ºF (16 to 30ºC)	-
ClimateLineAir 11 temperature cut out	≤106ºF (≤41ºC)	-
Maximum recommended pressure	30 cm H₂O (30 hPa)	30 cm H₂O (30 hPa)
Maximum working temperature, when used with a humidifier	-	≤106ºF (≤41ºC)
Material	Flexible plastic and electrical components	Flexible plastic
Inner diameter	0.6" (15 mm)	SlimLine: 0.6" (15 mm) Standard 2m: 0.74" (19 mm) Standard 3m: 0.74" (19 mm)
Length	6'6" (2.0 m)	SlimLine: 6' (1.8 m) Standard 2m: 6'6" (2.0 m) Standard 3m: 9'10" (3.0m)
Note The manufacturer reserves the right to change these specifications without notice.

Air tubing resistance to flow and compliance information

Refer to the Air tubing compliance guide in ResMed.com.

Characteristics of compatible Bacterial/ Viral (B/V) filters

Resistance over the flow range:	Recommend a B/V filter with resistance of < 2.5cm H₂O (2.5hPa) at 60 L/min
Dead space (volume):	< 90 mL
Connectors:	ISO 5356-1:2015 compliant connectors
Bacterial Filtration Efficiency (ie BFE):	>99.9%
Viral Filtration Efficiency (ie VFE):	>99.7%
Maximum duration of use:	Refer to manufacturer's datasheet
Replacing B/V filter:	Refer to manufacturer's datasheet
Compliance:	< 0.103mL/ cm H₂O (<0.103mL/hPa)

Note

B/V filters are high in impedance and show variability in their pneumatic characteristics that may affect delivered pressure and the accuracy of displayed and reported values

Using the ClimateLineAir 11 or SlimLine above 20 cm H₂O with a bacterial/viral filter may result in pressure drop during peak inspiratory flow.

Applied parts

Patient interface (mask) and air tubing

AirCurve 11 VPAP Tx mode names

Mode	System Code as per ISO 19223:2019
CPAP	CPAP
AutoSet	CPAP (superordinate mode)
AutoSet for Her	CPAP
S Mode	CSV-PS
VAuto	CSV-PS (superordinate mode)
ST Mode	S/T-PS/PC(q)
T Mode	CMV-PC
ASV	S/T-vtPS/vtPC (superordinate mode)
ASVAuto	S/T-vtPS/vtPC (superordinate mode)
