PSG connections

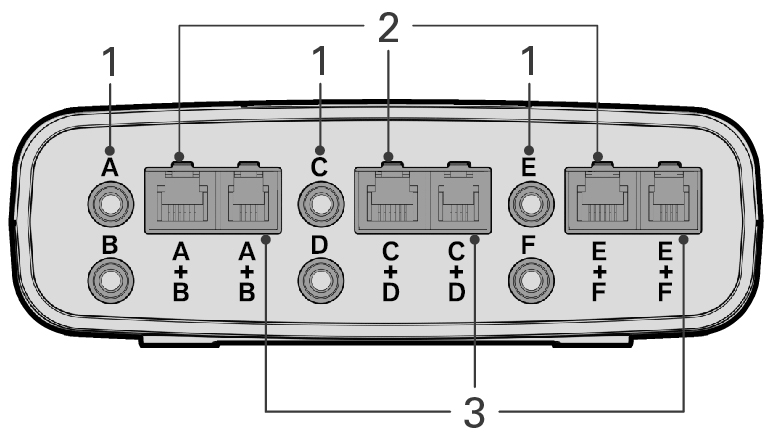

TxLink 2 provides up to six analog DC outputs (A-F), which can be used to transmit the real-time streams measured by the ResMed therapy device to a PSG system. To support many different types of PSG systems, each DC output is available at three connection points. Each mono jack connector provides one channel only. Each modular connector provides two channels.
 |
1 | 3.5 mm mono jack connector (A-B, C-D, E-F) |
2 | 6P6C modular connector (A+B, C+D, E+F) |
3 | 4P4C modular connector (A+B, C+D, E+F) |
For further information on setting up PSG connections, refer to the PSG manufacturer’s guide.
