At a glance
WARNING
Use only recommended ResMed masks and accessories or other vented masks as recommended by the prescribing doctor with this device. Using these components allows normal breathing and prevents potential asphyxiation.
The AirCurve 11 VPAP Tx system includes the following:
Device
HumidAir 11 Cleanable tub
ClimateLineAir 11 heated tubing or SlimLine™ tubing
Air11™ Power supply unit: 90W AC adaptor
Travel bag.
Refer to the ResMed website (ResMed.com/productsupport) for a range of spares and compatible accessories available for use with the device including:
Air tubing (ClimateLineAir 11, SlimLine, Standard 2m and Standard 3m)
HumidAir 11 Standard tub (Single patient re-use - cannot be reprocessed)
HumidAir 11 Cleanable tub (Multi patient re-use - can be reprocessed)
Side cover which allows use without the humidifier tub
Air11 Filter - standard
Air11 Filter - hypoallergenic
SD card cover
Bluetooth oximeter
Notes
The AirCurve 11 VPAP Tx device is compatible with ResMed masks. For a complete list, see the Mask/Device compatibility list on ResMed.com/downloads/devices.
The HumidAir 11 Standard tub and the HumidAir 11 Cleanable tub are the only water tubs used with the AirCurve 11 VPAP Tx device.
The ClimateLineAir 11 is the only heated tubing that is compatible with the AirCurve 11 VPAP Tx device.
This device is suitable for use with the Air11 90W AC power supply unit. The Air11 65W AC Adaptor can be used with the AirCurve 11 VPAP Tx device but there may be some degradation of the humidifier performance when mouth or mask leak is present.
To reduce the likelihood of disconnection and to prevent adverse ventilator performance use only accessories compatible with the ventilator. Compatibility is determined by reviewing the instructions for use of either the ventilator or the accessories.

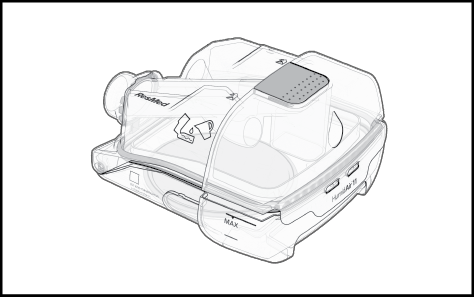

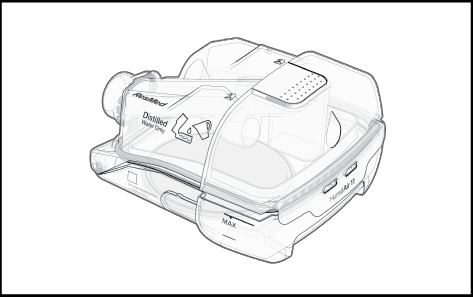

Humidifier tubs
HumidAir 11 Standard tub | HumidAir 11 Cleanable tub | ||
|
| ||
|
|
